450mm Effective Width 220v Automatic Litting Machine Advanced Technology

Name: 450mm Effective Width 220v Automatic Litting Machine Advanced Technology
Brand: SUNRISE
Price: 1500 USD

Brand Name : SUNRISE

Model Number : SR-350FII

Certification : CE

Place of Origin : Zhejiang, China

MOQ : 1

Price : 1500-1700USD

Payment Terms : T/T

Supply Ability : 30 Set/Sets per Month

Delivery Time : 15days

Packaging Details : exported wooden case

Accuracy Rate : ±0.10mm

Key Selling Points : Automatic

Position Accuracy : +-0.1mm

Application : Label Cutting

Slitting speed : 120m/min

Plate Type : Flatbed Printer

Effective Width : 450mm

Machinery Test Report : Provided

Voltage : 220v

Main motor power : 1.5kw

Contact Now

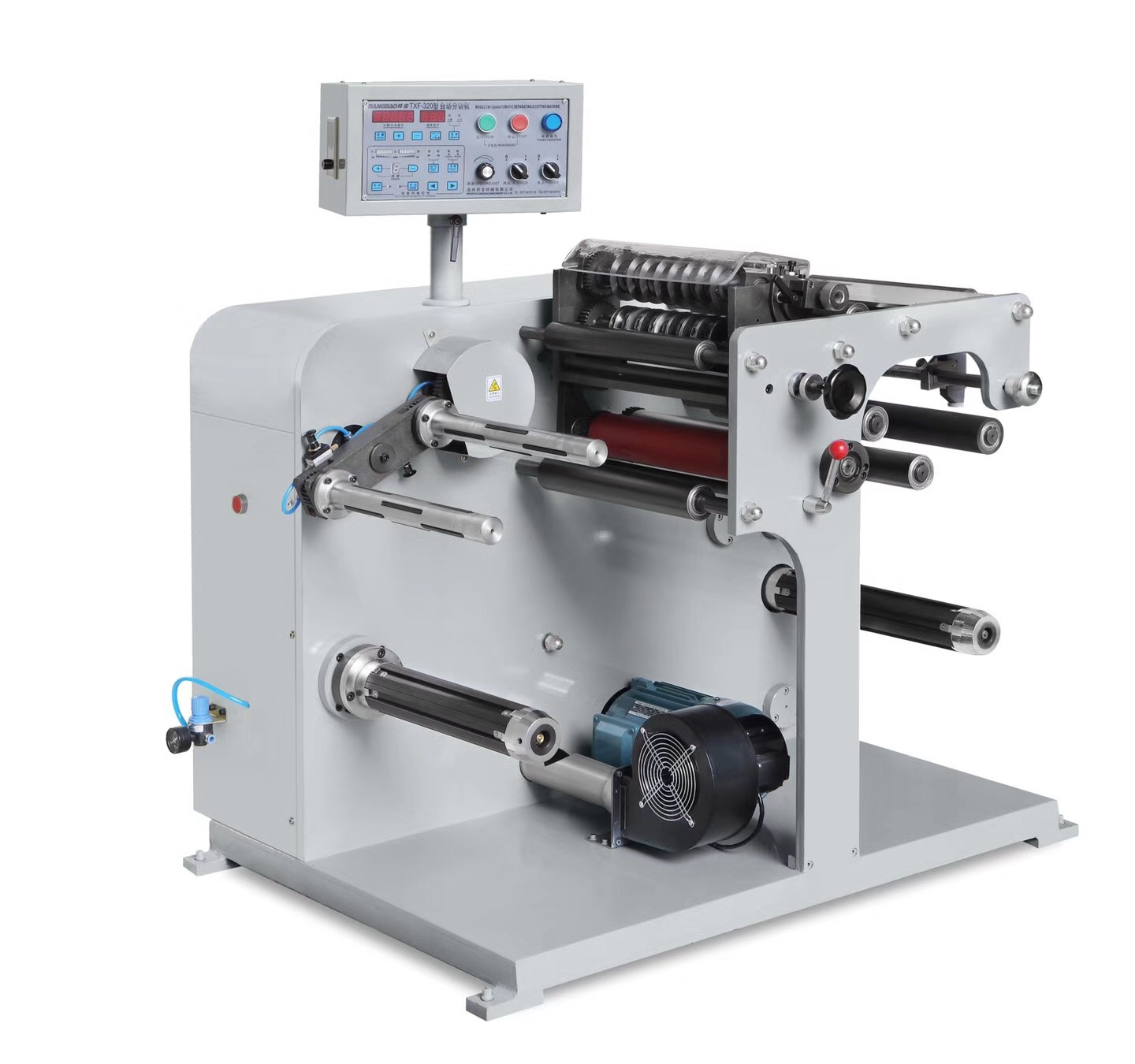

Automatic Turret Type Slitting Machine

Functional characteristics

YS-320FII is automatic slitting machine, which is a matched machine with die cutting machine, it is suitable to slit narrow paper, it can automatic meter, set length, automatic stop, automatic web-guiding and so on functions. Whole machine is with compact structure,running fast,high efficiency,high accuracy,easy-operation,running stably etc features.

Technical parameters:

Model	YS-350FII
Slitting speed	120m/min
Max. Width	350mm
Max. Unwinding diameter	500mm
Max. rewinding diameter	500mm
Min. Slitting width	16mm
Max. Slitting width	340mm
Accuracy rate	±0.10mm
Voltage	220v
Main motor power	1.5kw
weight	600kg
Dimension	12008001280mm

Features:

Turret shaft, and easy to change different size of rewind shaft
All shafts automatic inflate air
This standard machine with 3 magnetic tension controllers.
Machine with 2 sets of 1inch shafts

450mm Effective Width 220v Automatic Litting Machine Advanced Technology
