Rotary Blank Label Die Cuting Machine With Slitter

Name: Rotary Blank Label Die Cuting Machine With Slitter
Brand: SUNRISE
Price: 6500 USD

Rotary Blank Label Die Cuting Machine With Slitter Manufactures

Brand Name : SUNRISE

Model Number : YS-350Y

Certification : CE

Place of Origin : Zhejiang, China

MOQ : 1

Price : 6500USD

Payment Terms : T/T

Supply Ability : 30 Set/Sets per Month

Delivery Time : 20 working days

Packaging Details : exported wooden case

Slitting speed : 120m/min

Type : Rotary

Machine Size : 2600*900*1600mm

Magnetic size : 60T-150T

Keywords : Rotary And Slitting Die Cutting Machine

Condition : New

Max. Roll Width : 350mm

Max. Unwinding diameter : 500mm

Contact Now

Rotary Blank Label Die Cuting Machine With Slitter

Functional characteristics:

YS-350Y model die cutting and slitting machine is with rotary die cutting function is a new design, it equipped with high accurate rotary die cutting system, this machine is suitable for blank adhesive label material. Die cutting, slitting can be completed in one process. It has the function of automatic meter counting, Automatic stop, web guiding by photoelectric etc functions. This machine has the characteristic of compact structure,fast speed,high efficiency,easy operation,accurate slitting and stably running and so on features.

Features:

Rewinder and unwinder all are with magnetic tension controller
Air shaft automatic inflate air
Rewind shaft:2 pces of 1inch

Technical parameters:

model	YS-350Y	YS-450Y
Slitting speed	120m/min	120m/min
Max. Roll Width	350mm	450mm
Max. Unwinding diameter	500mm	500mm
Max. rewinding diameter	500mm	500mm
Accuracy rate	±0.10mm	±0.10mm
weight	650kg	850kg
Dimension	26009001600mm	270013001700mm
Magnetic size	60T-150T	60T-150T

Machine details

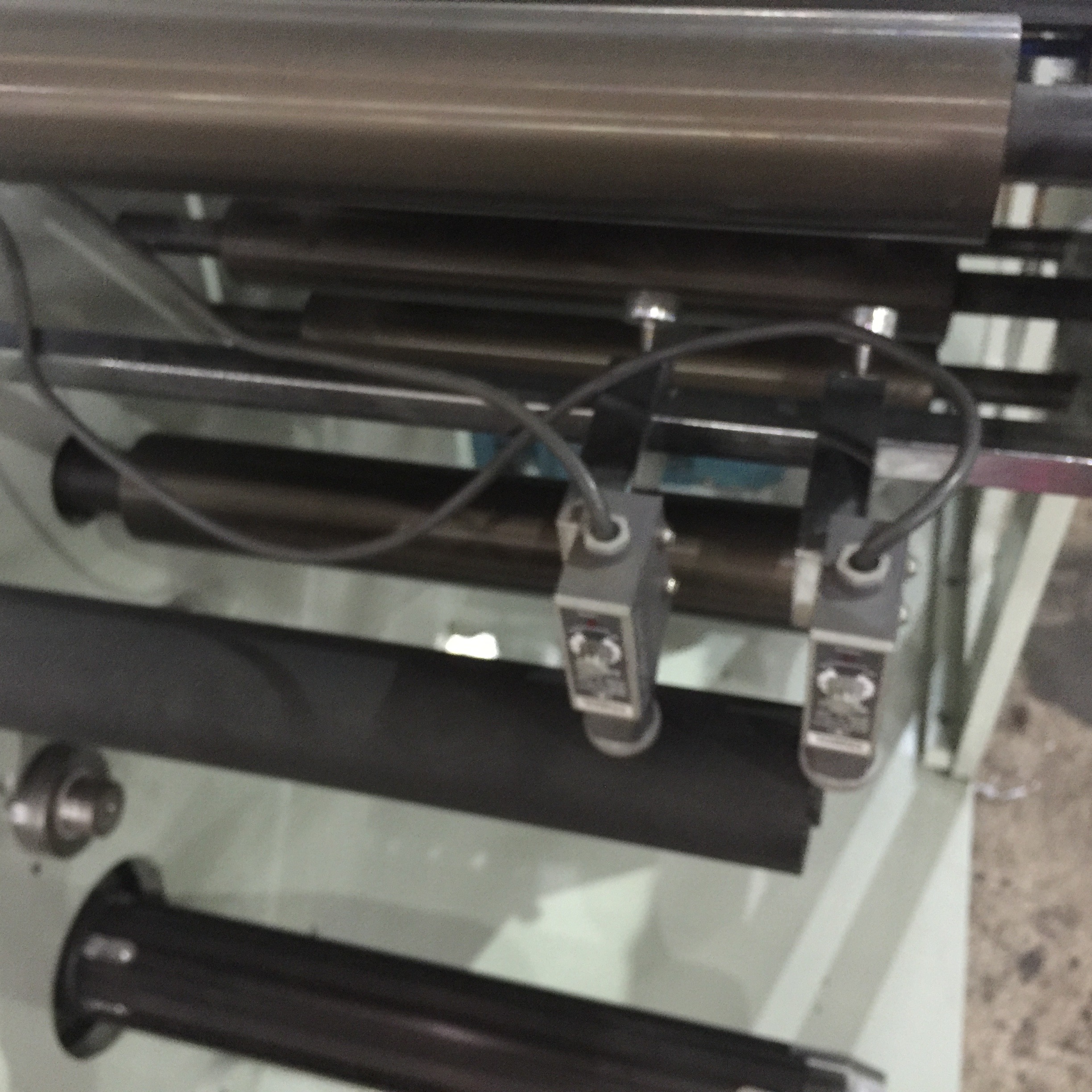

1	by sensor
2	Tension control by magnetic clutch
3	Upper rewind is turret
4	Die cutting parts,Use magnetic cylinder and cutter

Main Parts:

NO.	Parts Name	Brand
1	Transducer	France - Schneider
2	Epc web guide	China
3	Main motor	China-shanghai
4	Buttons	French--Schneider
5	A.C.Contactor	China
6	Counter	Germany-LEUZE

Rotary Blank Label Die Cuting Machine With Slitter Images
