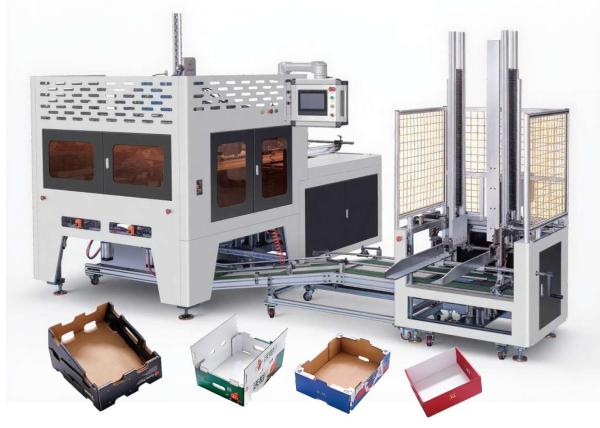

SR-1210X Automatic Corrugated Vegetables Carton Box Making Machine Fruit Box Folding Machine With Automatic Stacker
Product Descriptions:
This product is our company launched a new fully automatic box making equipment which is used to solve the above situation,and it filled the gap in the domestic industry (box production).this machine can completes the product process in one time include cardboard feeding, spraying, edging, folding side, folded into the molding, to the final box stacking through the computer program.Its advantage is flexible operation, low maintenance cost, high efficiency, its production efficiency and traditional manual compared to improve dozens of times.
In addition to making traditional boxes, machine can also make other palletizing boxes, as well as the folding packaging boxes without glue, it is suitable for food packaging boxes; fruit/vegetable packaging boxes and other product boxes and etc.
Features:
- Imported glue spraying system,with automatic glue spraying compensation function
-
Add the folding knives device, can do various boxes
-
cardboard adopt automatic feeding with bottom suction, continuous feeding, forming, conveying and stacking at one time
-
Adopt PLC controller, photoelectric tracking system, gas source detection system, human-Machine interface, automate the whole process of box formin
-
Fiber positioning for folding and gluing to reduce gluing errors. Servo pushes the cardboard with glue on front and back to reduce photoelectric eyes error, which can make glue more accurate
-
Infrared safety protection system to ensure the safety of personnel operation
-
Automatic fault diagnosis function
-
Quick mold change adjustment device
-
Cage design of machine frame, integral processing, grouping combination
-
The whole machine occupies a small area and has good stability
Technical parameters:
| Thickness of cardboard | Min. size | 1.5mm |
| | Max. Size | 7mm |
| Power | 380V/50Hz |
| Noise | ≤80dB |
| Speed | 1500-3500pcs/hour |
| Cardboard stacking height | 280mm |
| Stacked weight | 30kg |
| Total power | About 15kw |
| Glue capacity | 10L |
| Air source | 50 Litre/min |
| Machine weight | 2200kg |
| Dimensions | 3080x1805x2065mm(LxWxH) |
Packaging boxes specification:
| Package Size | W: Min. size | 450mm |
| | W: Max. size | 1200mm |
| | L: Min. Size | 450mm |
| | L: Max. size | 1000mm |
| Carton size
Length=L Width=W Hight=H Hight= K(cover) | L: Min. Size | 240mm |
| | L: Max. size | 600mm |
| | W: Min. Size | 240mm |
| | W: Max. size | 450mm |
| | H: Min. Size | 70mm |
| | H: Max. size | 200mm |

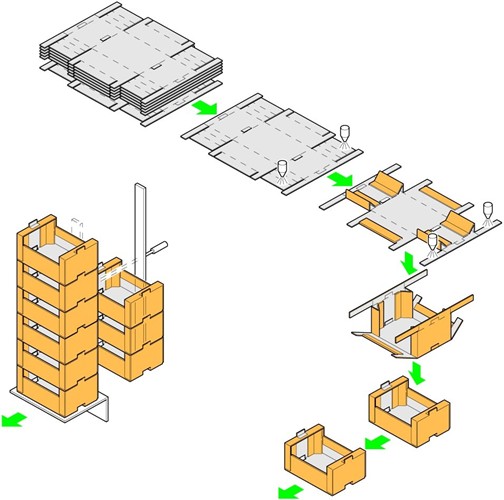

Box folding process flow chart:

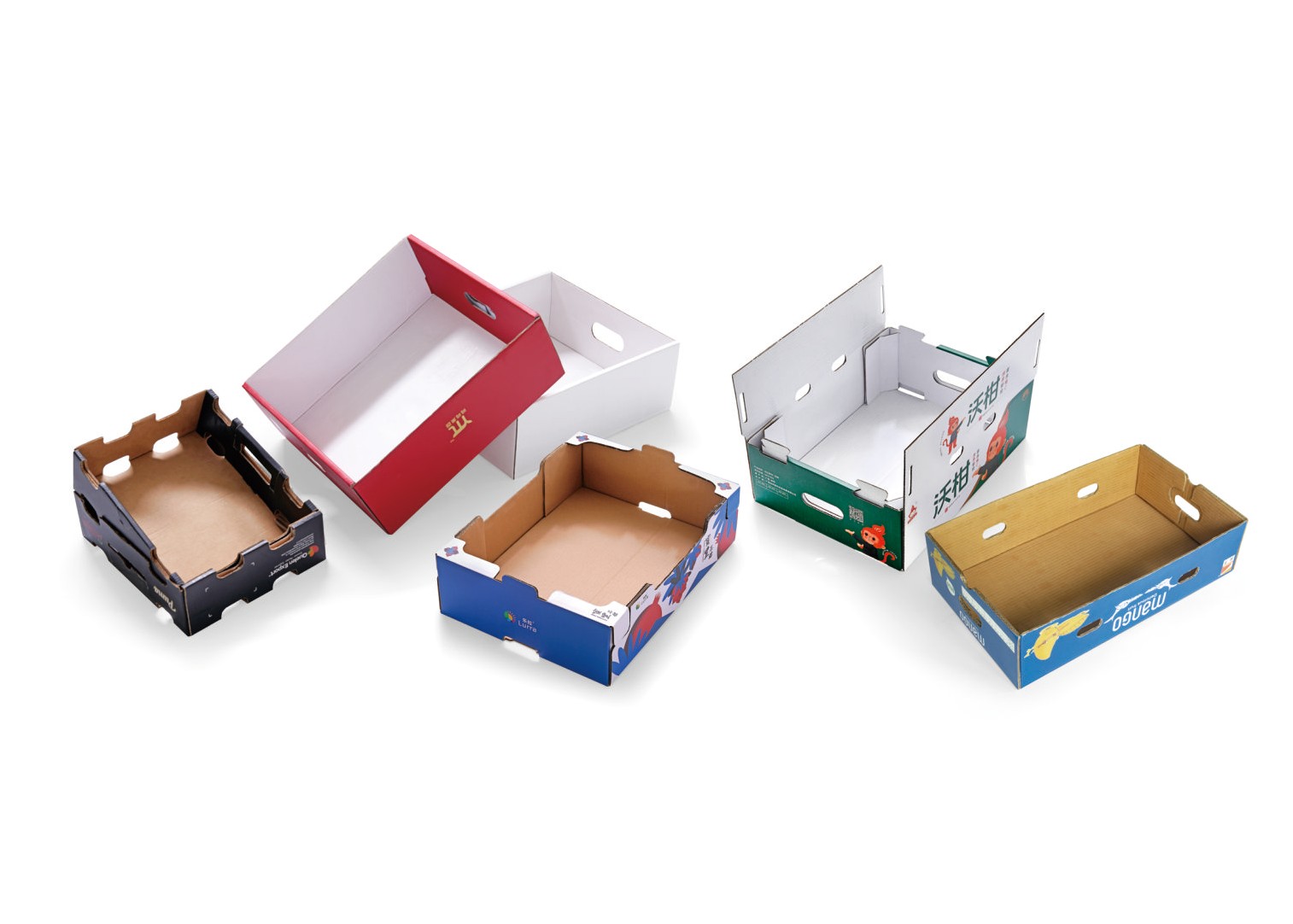

Sample:
Machine details:

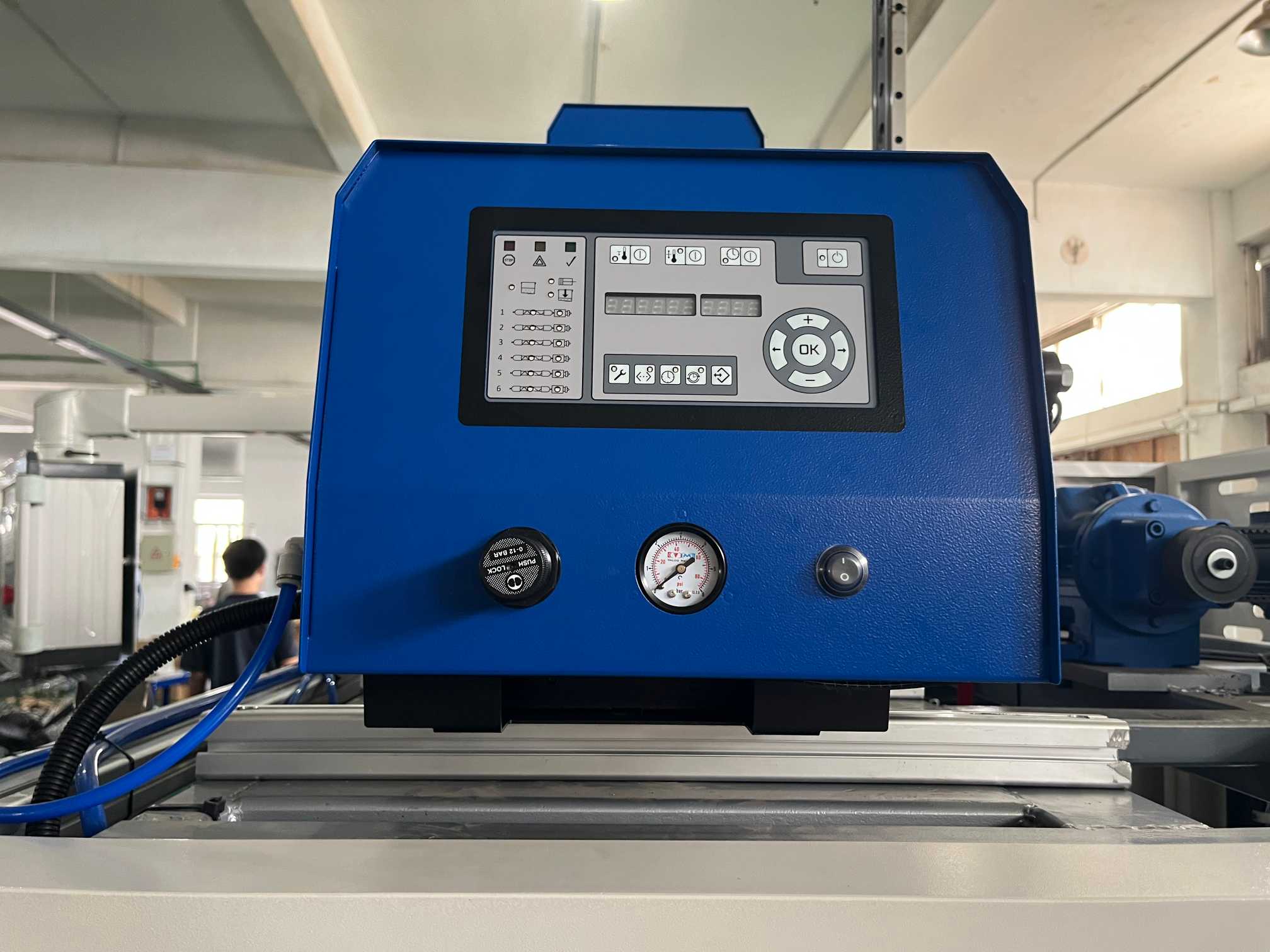

Glue Melt

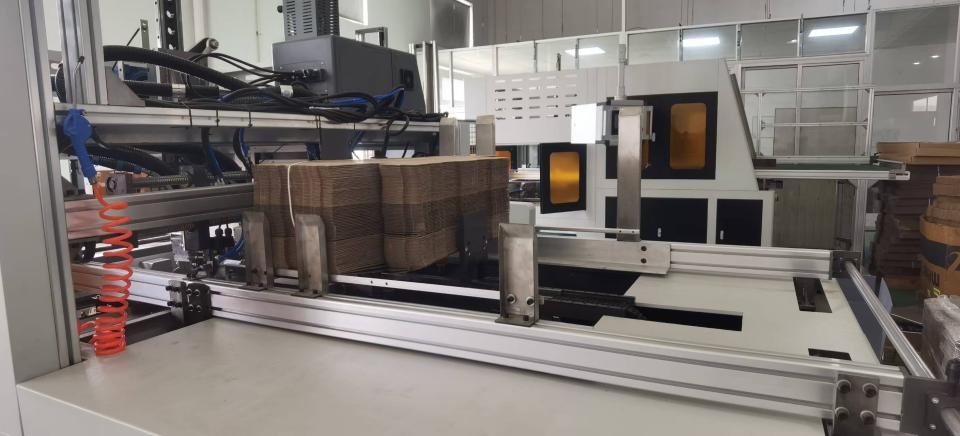

Paper Feeder

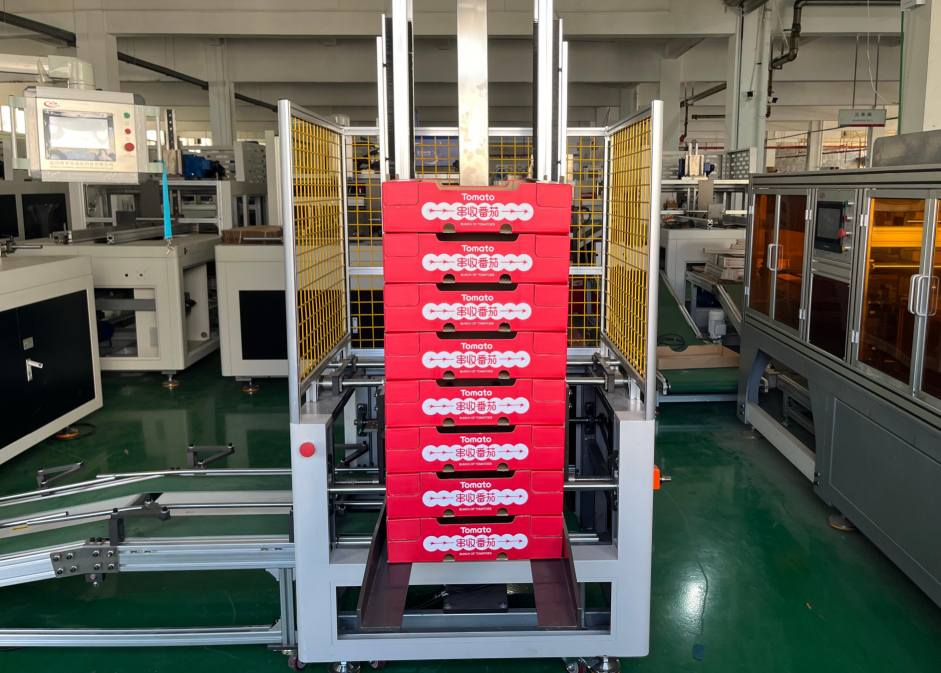

Automatic stacker(Optional)
Electricity Parts
Packing & Delivery:
Company Details:
Wenzhou Sunrise Macinery Co.,Ltd professionally research and manufacture label die cutting machine, label slitting machine and some related series products, we pay attention to talents and the technical innovation, insist on "technical innovationnational brand' as development strategy, to make company as the leader in after printing machinery line. Sincerity, quality,service is our operation principle, to be braveaggressivepragmaticefficient is our company spirit. We research and manufacture various of types of machines, welcome all old and new customers and friends to visit us!

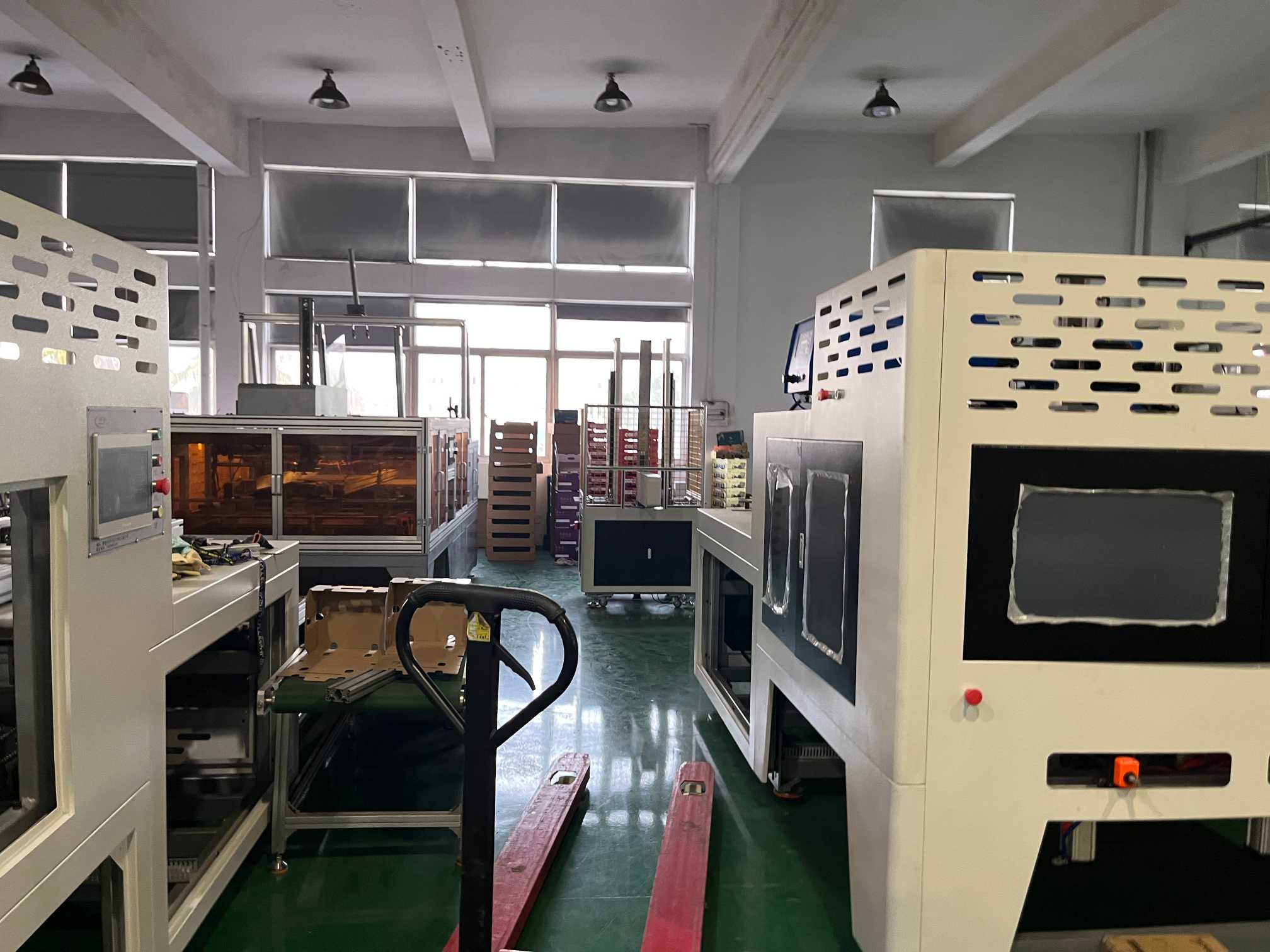

Factory:
FAQ:
1. who are we?
We are based in Zhejiang, China, start from 2013,sell to Domestic Market(60.00%),Mid East(12.00%),Eastern Asia(5.00%),South Asia(4.00%),Central America(3.00%),South America(3.00%),Africa(3.00%),Southeast Asia(3.00%),Oceania(3.00%),North America(2.00%),Eastern Europe(2.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Label Die Cutting Machine,Slitting Machine,Flexo Printing Machine,Laminating Machine,Rotary Label Die Cutting Machine
4. why should you buy from us not from other suppliers?
Wenzhou Sunrise Macinery Co.,Ltd professionally research and manufacture label die cutting machine, label slitting machine and some related series products, we pay attention to talents and the technical innovation, insist on "technical innovationnational
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Chinese
